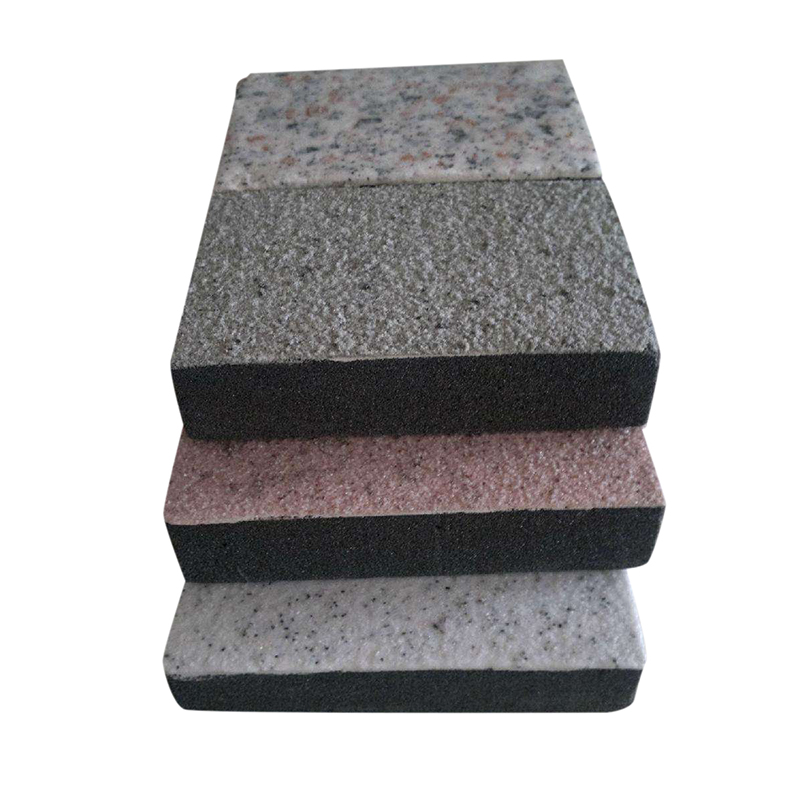

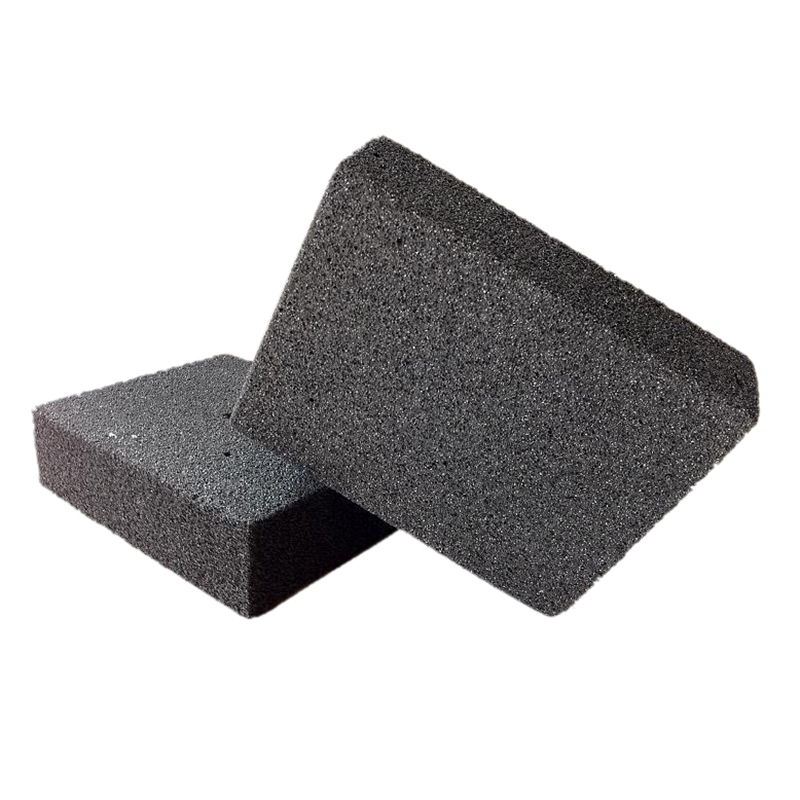

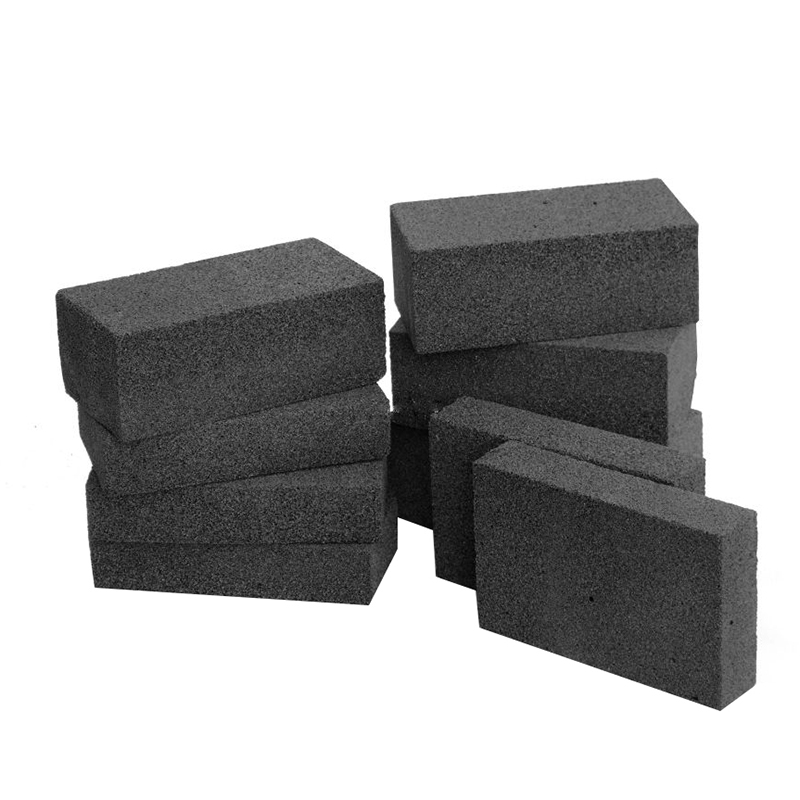

Foam glass (cellular glass) is a new kind of inorganic heat insulating material with a structure of closed cells. It is mainly made of glass powder added with adequate foaming agents, heating and foaming in high-temperature tunnel furnace, then annealing, cooling and cutting. it has stable chemical properties with features of incombustibility, can be used in -268° C to 480° C, vapor impermeability, low thermal conductivity, no water absorption, no aging and long service life, etc. it is praised as “permanent heat insulating material with no need of renewal” .
Application:
For now, foam glass has been widely applied in the fields of petroleum, chemical industry, construction, transportation, cold storage, underground engineering, etc. With its advantages of long service life, stable performance, environmental friendly and recyclable, foam glass is now recognized as the ideal energy-efficient insulation material for future construction. 370/5000
Performance Characteristics:
Item | Unit | I type | II type | III type |
Average Density | kg/m3 | 98-140 | 140-160 | 160-180 |
Thermal Conductivity | W/m.K | ≤0.043 (10℃) | ≤0.056 (10℃) | ≤0.059 (10℃) |
Compressive Strength | MPa | ≥0.50 | ≥0.50 | ≥0.60 |
Water Absorption | Vol % | ≤0.5 | ≤0.5 | ≤0.5 |
Working Temperature | ℃ | -200 ~ +450 | -200 ~ +450 | -200 ~ +450 |
Lineal Thermal Expansion Coefficient | 1/°C | 9×10-6 | 9×10-6 | 9×10-6 |
